Flex PCB Assembly: A Comprehensive Overview
28 September 2023
Views: 196
Flexible printed circuit boards, commonly known as flexible PCBs or flex circuits, are printed circuits formed on thin and flexible insulating films. They can be bent, curved, or folded, representing a cutting-edge technology that has revolutionized the electronics world. Unlike rigid PCBs, flexible circuits are used to create complex shapes that rigid boards cannot achieve. Due to their flexibility, flexible PCBs find extensive applications in displays, wearable devices, medical equipment, and more.

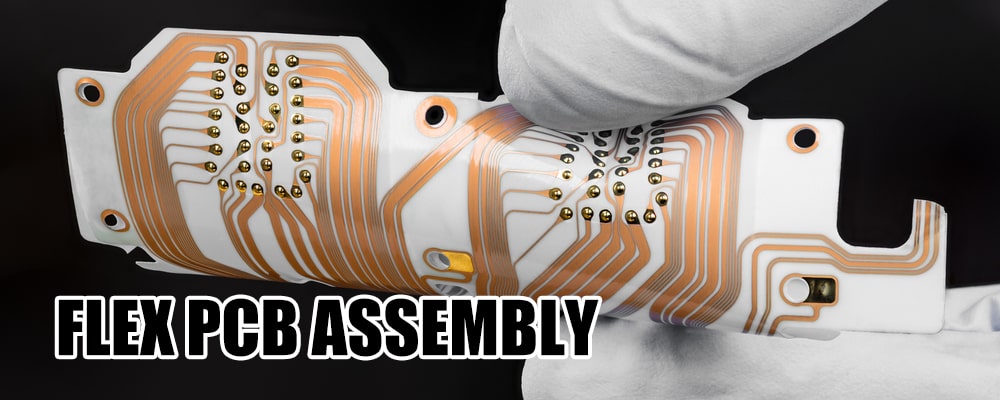

flex pcb assembly

What is flexible PCB assembly?


Flexible PCB assembly involves connecting electronic components to a flexible plastic substrate, typically made of materials like polyimide or similar highly flexible materials. Through conductive traces or through-hole interconnections, the PCB can be bent or folded into different shapes without affecting its functionality, making it an ideal choice for space-constrained, compact, or mobile devices.

Advantages of flexible PCB assembly


Space optimization: Flexible PCBs enable efficient space utilization, making them ideal for compact and small electronic devices.

Flexibility: The ability to bend and flex reduces the risk of breakage and enhances the durability of the PCB, especially in applications subjected to vibration or movement.

Weight reduction: Flexible PCBs are lightweight, making them suitable for portable devices and applications where weight is a critical factor.

Enhanced reliability: Flexible PCBs have fewer interconnections and solder joints, reducing the chances of failure due to mechanical stress or thermal expansion.

Cost-effectiveness: The assembly process is simplified, reducing the need for interconnecting cables and lowering overall manufacturing costs.

Differences between flexible circuit assembly and rigid PCB assembly


Component Placement
Surface mount technology (SMT) is typically used to place components on flexible circuits. Automated pick-and-place machines are commonly used for large-scale production. However, special care must be taken during placement due to the flexibility of the substrate:

1.The substrate should be securely fixed in place to prevent shifting or movement during the placement process. Vacuum workbenches or dedicated fixtures are usually employed.

2.Component placement should minimize stress on the board during reflow. Sharp bends should be avoided whenever possible.

3.Larger components may require additional mechanical attachments such as solder paste, adhesive dots, or hot-melt studs to prevent movement during reflow.

4.Placement accuracy is crucial, as misaligned components can cause the board to shift during reflow. Vision systems can compensate for any motion.

Reflow Soldering
Similar to rigid PCBs, reflow ovens are typically used to solder surface mount components during the assembly process. However, special configurations and techniques are required:

1.Gentler temperature ramps are needed to prevent excessive pressure on the flexible circuit during heating.

2.Lower peak temperatures are required depending on the characteristics of the substrate material.

3.Nitrogen inert atmosphere helps prevent oxidation issues.

4.The board needs a secure and non-slip fixture to prevent shifting or warping during reflow. A vacuum table provides consistent support.

5.The bending radius must be maintained to prevent damage from tight folding during reflow soldering.

Inspection and Testing
Due to increased reliability risks, rigorous inspection and testing are particularly important for flexible circuits:

1.Automated optical inspection (AOI) checks for defects in damaged/misplaced components.

2.Functional testing verifies the integrity of all circuits and connections after assembly.

3.Environmental testing (temperature, humidity, vibration, etc.) confirms the design's ability to withstand operating conditions.

4.Completed circuits undergo visual and microscope inspections to detect any defects or signs of damage during the assembly process.

5.Samples may undergo reliability testing, such as thermal shock or flexural endurance tests.

Applications of flexible PCB assembly


Consumer electronics: Flexible displays, wearable devices, smartphones, tablets, and gaming consoles benefit from the compactness and flexibility of flexible PCBs.

Automotive: Flexible PCBs are used in automotive applications such as instrument clusters, infotainment systems, and Advanced Driver Assistance Systems (ADAS).

Aerospace and defense: The lightweight and rugged characteristics of flexible PCBs make them suitable for aerospace and defense applications, including satellites, aviation electronics, and military equipment.

Medical devices: Flexible PCBs are used in medical devices like pacemakers, hearing aids, and medical imaging equipment due to their flexibility, biocompatibility, and compactness.

Industrial automation: Flexible PCBs are utilized in industrial control systems, robots, sensors, and communication modules to enhance precision and reliability.

Flexible PCB assembly provides innovative solutions for compact, lightweight, and flexible devices, revolutionizing the electronics industry. Its advantages in space optimization, durability, and reliability make it the preferred choice in various fields such as consumer electronics, automotive, aerospace, medical devices, and industrial automation.POE has its own PCB assembly factory and has more than 20 years of assembly experience, please feel free to contact us to start your product assembly!
