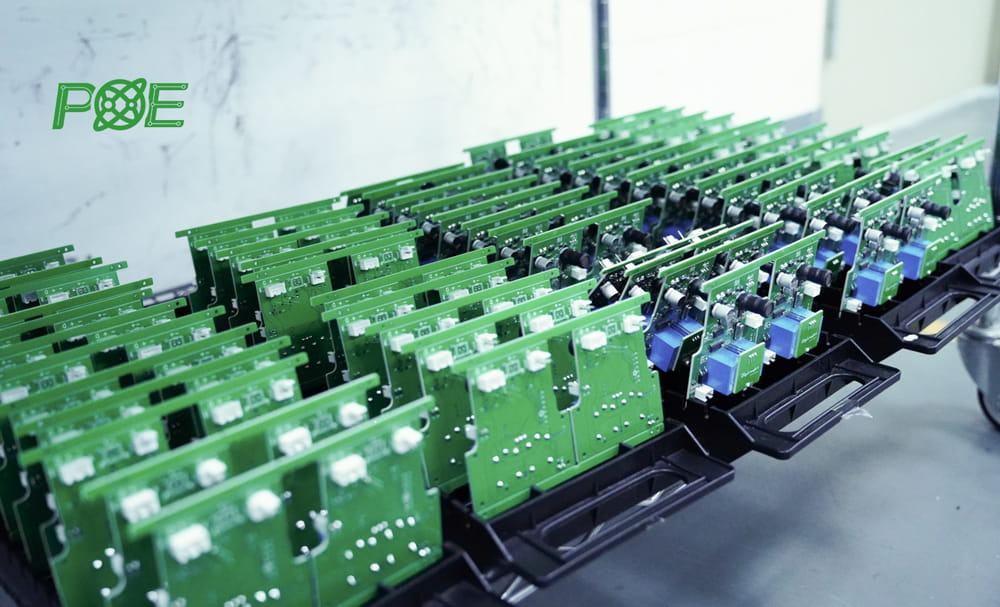

Short Run PCB Assembly

In the product development lifecycle, the gap between a verified prototype and stable mass production is wider—and riskier—than most teams anticipate. Short run PCB assembly is designed to occupy that gap: a disciplined, commercially oriented production phase that validates both product and process before capital commitment escalates.

What Exactly is Short Run PCB Assembly?

Short run PCB assembly refers to the assembly of printed circuit boards in quantities that exceed prototyping needs but fall short of mass production volumes—typically 25 to 500 assembled units.

This range is not arbitrary. Below 25 units, assembly is generally treated as prototyping, where design iteration remains open and cost-per-board is a secondary concern. Above 500 units, production economics begin to favor low-volume optimization strategies, including consigned material programs and dedicated line allocation. The 25–500 window, by contrast, demands a different operational model: one that balances engineering oversight, supply chain responsiveness, and commercial-grade quality—without the unit-cost pressure of scale.

Key characteristics include:

A defined production intent: Unlike prototypes, short run boards are built for shipment to customers, partners, or controlled field environments.

Commercial quality expectations: Workmanship follows IPC-A-610 Class 3 standards; inspection and test coverage is comprehensive, not sampled.

Limited but consequential volume: Enough to expose process sensitivities and supply chain constraints—yet small enough to avoid irreversible financial exposure.

From an operational perspective, short runs are best understood as time-bound, purpose-driven production lots. Common triggers include product launches, pilot programs, regulatory submissions, and initial channel fulfillment. They are not “mini mass production,” nor are they “extended prototyping.” They are a distinct manufacturing phase with its own cost structure, quality requirements, and supplier selection criteria.

For organizations with mature NPI processes, short run assembly is not optional—it is the controlled environment in which manufacturing readiness is proven before scale.

Short Run vs. Prototype vs. Small Run vs. Low Volume vs. Mass Production

Dimension	Prototype	Short Run	Small Run	Low Volume	Mass Production
Typical Quantity	1–10	25–500	10–250	250–2,000	10,000+
Primary Purpose	Function verification	Pilot production, initial launch	Design validation	Production validation	Cost-optimized volume
Cost Priority	Speed is primary	Balance of speed, cost, quality	Quality and validation	Cost-value balance	Unit cost is primary
Lead Time	2–5 days	5–10 days	5–10 days	5–12 days	2–8 weeks
Design Changes	Expected, minimal cost	Possible, moderate cost	Possible, moderate cost	Limited, higher cost	Extremely costly
Testing	Basic functional	100% inspection	100% inspection	100% inspection	Statistical sampling
Supplier Interest	High (proto houses)	Specialized capability required	Moderate	Moderate to High	High (EMS factories)
Key Investment	Engineering time	Bridge to production	Risk mitigation	Supply chain validation	Capital efficiency

Short Run occupies a specific niche. Large EMS providers often deprioritize orders below 500 units due to line efficiency metrics, while prototype houses lack the quality systems and supply chain discipline for commercial shipments. Short run requires a partner optimized for this middle ground.

Why Short Run PCB Assembly Matters?

1. Bridge the Gap Between Prototype and Production

The transition to scale introduces variables impossible to simulate in a lab. Short runs validate whether the design holds up under production stresses, whether the supply chain can support build schedules, and whether process controls maintain consistency across a batch. This phase prevents the costly scenario of discovering a manufacturing flaw after committing to 10,000 units.

2. Validate Manufacturing Processes Before Scaling

A short run serves as the first true test of DFM (Design for Manufacturability) feedback. It verifies SMT process stability, solder joint consistency under thermal stress, and the effectiveness of test fixtures. Yield data collected here directly informs process adjustments for mass production, improving overall equipment effectiveness (OEE) from day one.

3. Build Initial Inventory for Product Launch

Product launches require quantities that prototype shops cannot efficiently deliver but do not yet justify mass production. A 25–500 unit run provides sufficient inventory for initial customer shipments, channel partner stocking, press samples, and trade show demonstrations without excessive carrying costs.

4. Test Market Demand Before Large Investment

In hardware, overproduction is a critical failure mode. Short runs allow organizations to ship initial units, gather field data, and validate product-market fit. This feedback loop enables informed decisions on scaling, pivoting, or iterating before significant capital is deployed.

5. Establish Supplier Relationships

A short run is a high-fidelity trial of a manufacturing partnership. It reveals a supplier's responsiveness to BOM changes, transparency regarding component shortages, and adherence to quality documentation—establishing a foundation of trust before larger financial commitments are made.

Typical Applications for Short Run PCB Assembly

The following scenarios represent standard use cases for the 25–500 unit range:

Application	Description	Typical Quantity
Product Launch Inventory	Initial stock for customers, channel partners, and media reviews.	50–500
Pilot Production	First manufacturing run to validate process controls and supply chain logistics.	50–250
Market Validation	Limited release to gauge customer response and refine positioning.	25–100
Trade Shows & Events	Functional units for live demonstrations to investors and potential clients.	25–100
Channel Partner Stocking	Inventory buffers for distributors to facilitate faster lead times.	50–500
Clinical/Field Trials	Regulated deployment of devices requiring full traceability and documentation.	25–200
Crowdfunding Fulfillment	Initial batch delivery to backers following a successful funding campaign.	100–500
Limited Edition Products	Specialized variants for niche markets or premium segments.	50–250

What a Short Run PCB Assembly Service Includes?

DFM/DFT Review: Mandatory engineering analysis to identify potential assembly defects before stencil fabrication. Issues caught here prevent systemic failures across the entire lot.

PCB Fabrication: Procurement of bare boards meeting IPC Class 2 or Class 3 standards, depending on application requirements.

Component Sourcing: Procurement exclusively through authorized distribution channels (e.g., Arrow, Avnet, TTI) to mitigate counterfeit risk. Management of manufacturer minimum order quantities (MOQs) is critical.

SMT Assembly: Automated placement with statistical process control (SPC) monitoring.

Through-Hole Assembly: Manual or wave soldering for components not suitable for SMT.

AOI Inspection: 100% Automated Optical Inspection to verify component placement and solder joint integrity.

X-Ray Inspection: Non-negotiable for BGA, QFN, and other bottom-terminated components to confirm voiding and alignment.

ICT/Flying Probe Test: Verification of netlist continuity and isolation.

Functional Testing: Simulation of the end-application environment to validate performance against specifications.

Conformal Coating / Potting: Optional, depending on environmental requirements (e.g., moisture sensitivity, vibration).

Packaging & Shipping: ESD-safe, commercial packaging suitable for direct shipment to customers or warehouses.

The Cost Reality of Short Run PCB Assembly

Short run assembly carries a higher per-unit cost than mass production. This premium is a function of fixed cost amortization, not inefficiency.

Why per-board costs are higher:

Fixed Setup Costs: Stencil fabrication ($50–$100), SMT programming, and poka-yoke fixture development are fixed expenses amortized over a smaller unit count.

Component Economics: Distributors offer volume breaks; purchasing 100 units of a passive component incurs a higher unit price than purchasing 10,000.

Line Changeover Time: SMT lines incur downtime during changeovers. Short runs disrupt line efficiency, leading some suppliers to apply a premium.

Illustrative Cost Example (2026 Pricing):

Assumptions: 4-layer FR-4, 150 components, lead-free HASL, 100% AOI/X-ray.

Note: Actual pricing varies based on PCB thickness, layer count, finish type, component density, and test requirements.

10 pcs (Prototype): ~$80–$100 per board

100 pcs (Short Run): ~$25–$35 per board

1,000 pcs (Low Volume): ~$10–$15 per board

10,000 pcs (Mass Production): ~$6–$8 per board

The short run premium is insurance. A $3,000 short run that identifies a design flaw is significantly less expensive than a $50,000 mass production scrap event. The objective is to de-risk the transition to scale.

How to Prepare for a Short Run PCB Assembly Project?

Finalize Design and BOM: Freeze the schematic and BOM. Short runs are not the phase for experimentation; every change introduces cost and delay.

Verify Component Lifecycle and Availability: Check the PCN (Product Change Notice) and LTB (Last Time Buy) status. Identify second-source alternatives for critical components prone to allocation.

Define Test Requirements: Specify functional test parameters. Unlike prototypes, short run boards require consistent, automated testing to ensure uniform quality.

Prepare Compliance Documentation: Gather material declarations (RoHS, REACH) and prepare for potential requests for Certificates of Conformity (CoC).

Align Internal Stakeholders: Ensure procurement, engineering, and quality teams agree on the acceptance criteria and delivery schedule.

Why POE for Your Short Run PCB Assembly?

POE operates at the intersection of precision manufacturing and agile supply chain management, specifically engineered to serve the 25–500 unit segment with the rigor typically reserved for high-volume production.

Our infrastructure supports the stringent requirements of medical, industrial, and advanced computing sectors, backed by ISO 9001:2015, ISO 13485:2016, ISO 14001:2015, and adherence to IPC-A-610 Class 3 and IPC J-STD-001 standards. We maintain full UL recognition and ensure all processes meet RoHS and REACH compliance requirements.

What distinguishes POE in Short Run Assembly:

Controlled Process Execution: Every short run undergoes comprehensive DFM/DFT analysis and utilizes dedicated SMT lines configured for precision, not just speed.

Authorized Sourcing: We mitigate supply chain risk by procuring components exclusively through vetted, authorized distributors, ensuring full traceability and eliminating counterfeit risk.

Total Quality Assurance: 100% AOI, X-ray inspection for BGAs/QFNs, and functional testing are standard. Quality is non-negotiable, regardless of batch size.

Predictable Delivery: Our operational model prioritizes schedule adherence, providing realistic lead times (standard 5–10 days) and proactive status updates.

Complete Documentation: Each shipment includes First Article Inspection (FAI) reports, Certificates of Conformity, and full traceability data required for regulated industries.

Global Logistics: We manage complex international shipping requirements, delivering commercial-grade packaged products directly to your customers or distribution centers.

By treating short runs not as a burden, but as a critical phase of product validation, POE provides the reliability necessary to bridge the gap between prototype success and market leadership.

FAQ

Q: What is short run PCB assembly?

Short run PCB assembly is the production of assembled circuit boards in quantities typically ranging from 25 to 500 units. It serves as the transitional phase between prototyping (1–10 units) and low-volume production (250–2,000 units), focusing on commercial readiness and process validation.

Q: How does short run differ from prototype assembly?

Prototype assembly prioritizes speed and functional verification for internal engineering. Short run assembly prioritizes commercial quality (IPC Class 3), comprehensive documentation, and robustness, as these units are intended for external customers, regulatory submission, or revenue-generating activities.

Q: What is the difference between short run and low volume production?

While definitions vary, short run typically refers to 25–500 units intended for pilot programs, product launches, or market validation. Low volume generally refers to 250–2,000 units where production efficiencies begin to take precedence. Short runs emphasize flexibility and validation; low volume emphasizes cost optimization.

Q: Why is the per-board cost higher for short runs?

The increase is primarily due to fixed costs—such as stencil creation, machine programming, and engineering reviews—being spread over fewer units. Additionally, component pricing is less favorable at lower purchase quantities compared to bulk orders.

Q: When is the right time to move from prototype to short run?

When your design is functionally verified, frozen (or near-frozen), and you require units for external purposes: customer demos, regulatory testing, pilot production, or initial sales. If you are still iterating on the schematic weekly, remain in the prototype phase.

Q: What documentation is required for a short run quote?

Suppliers require the Gerber files (RS-274-X format), a complete Bill of Materials (BOM) with manufacturer part numbers (MPNs), and XY centroid data (pick-and-place file). Providing a comprehensive set of files accelerates the DFM review process.

Q: How long does short run PCB assembly typically take?

Standard lead times range from 5–10 business days, contingent on PCB fabrication schedules and component availability. Complex designs or allocated components may extend this timeline. Expedited services are often available for critical path projects.

Q: Are quality standards reduced for smaller batches?

No. Reputable manufacturers apply identical quality management systems regardless of volume. At POE, 100% AOI, X-ray inspection for complex packages, and functional testing are mandatory for all short run orders. The consequence of a defect in a 100-piece run is proportionally higher than in a 10-piece prototype run.

Q: Can I supply my own components (Consignment)?

Yes, consignment models are viable for short runs, particularly for long-lead-time or proprietary components. However, ensure your supplier conducts incoming quality control (IQC) on consigned parts to prevent assembly delays due to component defects.

Q: Is short run assembly suitable for medical devices?

Yes, provided the assembly partner holds relevant certifications. POE maintains ISO 13485:2016 certification, ensuring processes meet the stringent traceability and documentation requirements for medical device manufacturing, even at short run volumes.

Q: How do you handle component obsolescence or shortages in short runs?

A professional partner will perform a BOM analysis during the quoting stage to identify at-risk components. They should propose Form-Fit-Function alternatives sourced from authorized channels and seek explicit engineering approval before substitution.

Q: What is the advantage of using POE for short run assembly?

POE specializes in the 25–500 unit window, combining the agility of a prototype house with the quality systems of a high-reliability EMS provider. Our focus on DFM, authorized sourcing, and IPC Class 3 workmanship ensures your short run successfully bridges to mass production.

Ready to Start Your Short Run PCB Assembly Project?

Short run production is a strategic investment in product validation and risk mitigation. It provides the empirical data required to refine manufacturing processes and confirm market demand before scaling capital expenditure.

We invite you to leverage POE's expertise for your next build. Submit your Gerber files and BOM through our secure portal. Our engineering team will conduct a preliminary DFM review and provide a transparent, fixed-price quotation within one business day, allowing you to proceed with confidence.
