PCB Assembly Prototyping
23 July 2026
Views: 65

PCB Assembly Prototyping


In the lifecycle of a hardware product, the transition from a verified design file to a functioning physical board is the most critical inflection point. This isn't merely "small-batch production," nor is it a task best left to a technician's soldering iron at a lab bench. PCB Assembly Prototyping is a distinct professional service—a strategic bridge between design validation and mass manufacturing. For R&D managers and hardware leads, treating it as such determines whether your project scales smoothly or stalls in costly rework.

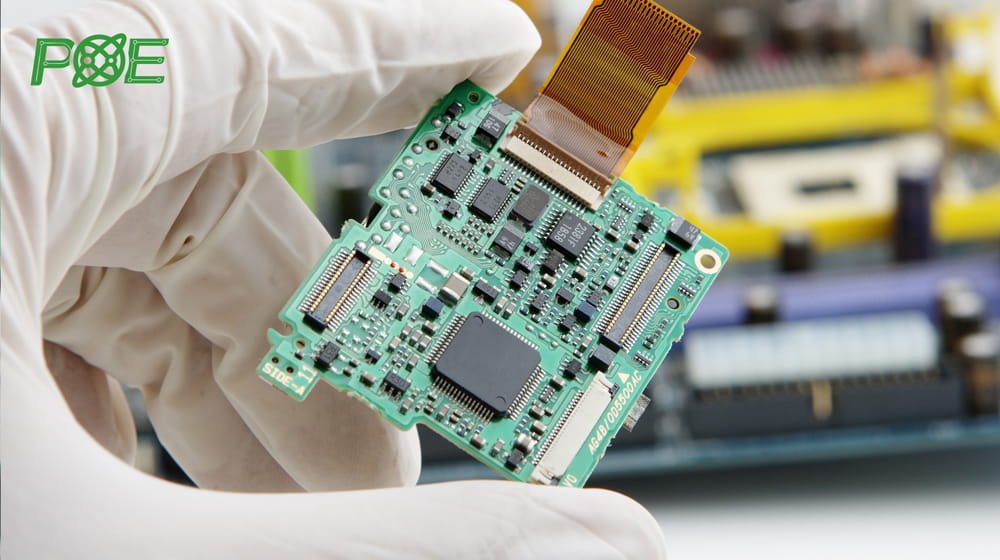

PCB Assembly Prototyping

What is PCB Assembly Prototyping?


PCB assembly prototyping is the process of assembling a limited quantity of printed circuit boards—typically 1 to 10 units—specifically for design verification, functional testing, and firmware integration.

Unlike informal bench soldering, professional prototype assembly utilizes the same industrial infrastructure destined for volume production: automated SMT lines, reflow ovens, and AOI inspection systems. The objective is singular: to validate that your design performs as intended in the physical realm before committing capital to production tooling.

To clarify the terminology often conflated in our industry:


PCB Fabrication:​ The creation of the bare board (the fiberglass substrate with copper traces).

PCB Assembly:​ The process of populating the bare board with electronic components.

PCB Prototyping:​ The comprehensive workflow—fabrication, assembly, and initial validation—required to produce a functional test unit.

At POE, while we operate a dedicated SMT assembly facility, we manage a network of certified fabrication partners to ensure your bare boards meet spec before components ever reach our line.

Prototype Assembly vs. Production Assembly



Dimension Prototype Assembly Production Assembly
Quantity​ 1–10 Units 1,000+ Units
Primary Goal​ Functional Validation & Debug Cost Optimization & Stability
Speed​ Critical Priority (Days) Important, but secondary to cost
Unit Cost​ High (Setup-intensive) Low (Economies of scale)
Design Changes​ Expected & accommodated Cost-prohibitive & avoided
Inspection​ Functional Test focused, 100% check Statistical Sampling & AOI
Yield Focus​ Functionality ("Does it work?") Efficiency ("Minimize scrap")
Lead Time​ 2–5 Days 2–8 Weeks

Prototype assembly prioritizes speed and correctness. Production prioritizes cost and yield. Attempting to apply production economics to a prototype request—or vice versa—leads to frustration on both sides.

The PCB Assembly Prototyping Process: Step by Step



Step 1: Design File Submission


You provide the Gerber files (RS-274X), a comprehensive Bill of Materials (BOM), and centroid (XY) data. Accuracy here is paramount; a missing footprint or incorrect land pattern at this stage creates a ripple effect of delays.

Step 2: DFM/DFT Review


Before a single component is ordered, our engineering team conducts a Design for Manufacturability (DFM) and Design for Test (DFT) review. For prototype runs, this is a collaborative safeguard. We flag potential risks—such as insufficient solder mask clearance around BGAs, thermal dissipation issues, or inaccessible test points—allowing for corrections while changes are still inexpensive.

Step 3: Component Sourcing


For low quantities, sourcing is often the bottleneck. We procure components primarily through authorized distribution channels (Arrow, Avnet, Digi-Key, Mouser). Should a part be nearing End-of-Life (EOL) or face allocation, we identify viable alternatives and present them for your written approval prior to purchase.

Step 4: PCB Fabrication


We coordinate with our vetted fabrication partners to produce your bare boards. For rapid-turn prototypes, this typically requires 2–3 days, often representing the longest lead-time item in the chain.

Step 5: SMT Assembly


Using automated pick-and-place machinery, components are mounted with high precision. Even for a single board, we utilize stainless steel laser-cut stencils for solder paste application and controlled reflow profiles. This ensures the prototype's construction mirrors the consistency expected in volume production.

Step 6: Through-Hole & Mixed Technology


While we advocate for SMT where possible, we recognize that prototypes often require specific through-hole connectors or legacy parts. Our technicians perform selective hand-soldering for these components, maintaining IPC-A-610 Class 3 standards even on these manual operations.

Step 7: Inspection & Functional Validation

Automated Optical Inspection (AOI) verifies solder joint integrity. However, the definitive test for a prototype is functional. We perform power-up tests, in-circuit checks, and, upon request, firmware loading to confirm the board operates against your specifications.

Step 8: Logistics & Delivery


Upon passing validation, boards are vacuum-sealed with desiccant and shipped globally, typically arriving within 2–5 business days from order confirmation.

Prototype Assembly vs. Hand-Soldering



Factor Professional Prototype Assembly Lab Hand-Soldering
BGA / QFN Packages​ ✅ Reliable placement & reflow ❌ Extremely high risk of hidden voids
Fine-Pitch Components​ ✅ Precise alignment ❌ Prone to bridging/shorts
Consistency​ High (Machine-controlled) Low (Operator-dependent)
Scalability​ Seamless transition to volume Requires complete process re-qualification
Time (10 Boards)​ 2–5 Days 1–3 Weeks

If your design incorporates BGAs, QFNs, or fine-pitch ICs, hand-soldering introduces variables that mimic design flaws. Professional assembly isolates the design, allowing you to trust your test results.

Why PCB Assembly Prototyping Matters?


1. De-risking Design Investments


Simulation software is powerful, but it cannot model every physical variable—from unexpected thermal hotspots to signal crosstalk on adjacent layers. Identifying a flawed impedance match during prototyping might cost a few hundred dollars and two days. Discovering it after a 10,000-unit production order can bankrupt a project.

2. Parallelizing Hardware and Firmware


Modern development cycles rely on concurrency. Prototypes provide the tangible hardware platform necessary for firmware engineers to begin integration testing, significantly compressing the overall project timeline.

3. Regulatory and Certification Readiness


Early prototypes allow for preliminary EMI/EMC scanning and thermal analysis. Addressing compliance issues during the prototype phase prevents catastrophic delays during formal certification.

4. Stakeholder Confidence


Whether presenting to internal executive committees or external investors, a functional prototype demonstrates tangible progress far more effectively than schematics or renderings.

The Cost of PCB Assembly Prototyping

Prototype pricing often surprises those accustomed to volume pricing because it is setup-intensive, not material-intensive.
The majority of the cost resides in fixed engineering overhead: stencil fabrication ($50–$100), machine programming, and the DFM review. These costs are amortized over a handful of boards, resulting in a higher per-unit price compared to volume production.

Typical Cost Drivers (2026 Context):


Engineering/DFM:​ $100–$250 (One-time)
Stencil:​ $50–$100
Components:​ Highly variable based on BOM complexity and availability.
Fabrication & Assembly:​ $200–$500 (for a 4-layer board, qty 5)

The Perspective Shift:​ View the cost not as an expense for five circuit boards, but as an insurance premium against a failed production run. The ROI manifests in the form of risk mitigation and accelerated time-to-market.

What to Look for in a PCB Assembly Prototyping Partner


1. Engineering-Centric Communication


Look for a partner who speaks your language. DFM feedback should be constructive and clear, explaining the why behind a recommendation, not just a list of errors.

2. Supply Chain Agility


Inquire about their sourcing process. A capable partner manages the "long tail" of prototype components, offering cross-references and alternatives without compromising your design integrity.

3. Standards Compliance


For high-reliability sectors (Medical, Automotive, Industrial), certifications aren't optional. Ensure your partner adheres to standards like IPC-A-610 Class 3​ and holds relevant ISO certifications (9001, 13485).

4. Scalability Pathway


The ideal partner handles your prototype today and your volume production tomorrow without requiring a process requalification. This ensures the "golden sample" from your prototype phase is reproducible at scale.

5. Transparency


From quoting to delivery, you should have visibility into the status of your build and immediate access to an engineer who understands your project.

Why POE for Your PCB Assembly Prototyping


At POE, we recognize that the 1 to 10 boards comprising your prototype run represent the culmination of months of R&D effort. We approach them with the rigor they demand.

Precision Assembly:​ Our SMT lines handle complex packages (BGAs, QFNs, 0201s) with IPC Class 3 reliability.

Integrated Workflow:​ We coordinate bare board fabrication through our certified partner network while managing the assembly in-house, providing a single point of accountability.

Rigorous Standards:​ Our facilities are certified to ISO 9001:2015, ISO 13485:2016,​ and IPC-A-610 Class 3, meeting the stringent requirements of medical, automotive, and aerospace clients.

Flexible Sourcing:​ We prioritize authorized distribution but accommodate customer-supplied parts or approved equivalents with full traceability.

Rapid Turnaround:​ Standard 2–5 day lead times keep your development cycle on schedule.

We don't just assemble boards; we provide the manufacturing intelligence required to move your product from concept to compliance.

FAQ

Q: What is the difference between PCB fabrication and PCB assembly prototyping?


A: Fabrication creates the bare board (the "chassis"). Assembly prototyping involves soldering components onto that chassis to create a functional electronic device.

Q: How many boards are needed for a prototype run?


A: Typically, 1–10 boards suffice. One board is used for "smoke testing," a second for destructive testing or environmental stress, and others for firmware development and regulatory pre-screening.

Q: Do you offer consignment assembly for prototypes?


A: Yes. If you have specific components (e.g., long-lead-time ICs or legacy parts), you can provide them, and we will integrate them into the assembly process under our standard quality controls.

Q: Can you handle lead-free and mixed-technology prototypes?


A: Absolutely. We are fully RoHS compliant and experienced in managing the complexities of lead-free reflow profiles and mixed-technology builds.

Q: What files are required to start?


A: We require Gerber files (RS-274X), a detailed BOM (including manufacturer part numbers), and XY centroid data. Eagle or Altium source files can also expedite the DFM process.

Ready to Validate Your Design?


The most expensive prototype is the one you skip. If you are preparing to move from schematic to silicon, let’s ensure your design is built on a foundation of manufacturing excellence.

Send us your design files. We will provide a comprehensive DFM review and a transparent quotation within one business day—giving you the clarity needed to proceed with confidence.
