HDI PCB Assembly Service

HDI is no longer optional in high-end electronics. AI servers, ADAS platforms, 5G radios, and flagship smartphones all assume it. If your design relies on high pin-count BGAs, tight real estate, or signal integrity beyond 10 Gbps, HDI is not a premium feature—it is the baseline. The question is not whether you need HDI, but whether your supply chain can deliver it reliably.

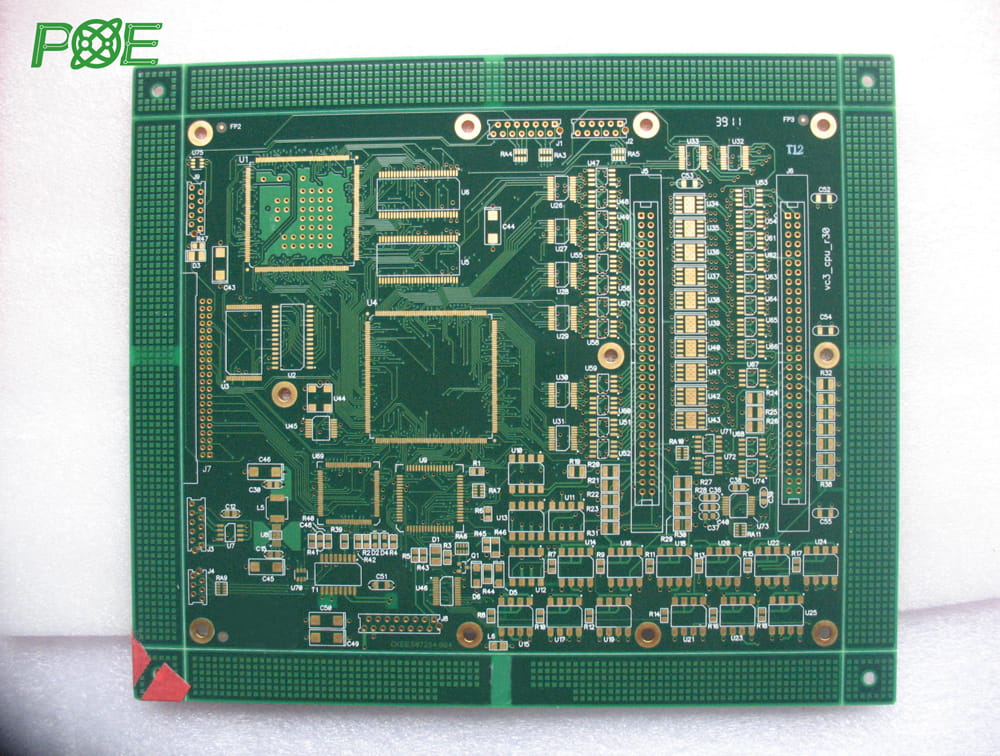

HDI PCB Assembly Service

What Is HDI PCB?

HDI (High-Density Interconnect) PCB is defined by IPC-2226 as a board with higher wiring density per unit area than a conventional PCB. In practice, that means laser-drilled microvias (≤150 μm), finer traces and spaces (typically ≤75 μm), and sequential lamination to form blind and buried via structures.

Key characteristics:

Microvias: Laser-drilled, ≤0.15 mm, connecting adjacent layers only.

Fine pitch routing: Trace/space often 50–75 μm.

Layer counts: Commonly 6–20+, compared to 1–8 layers for standard boards.

Blind/buried vias: Do not traverse the full board thickness.

Sequential lamination: Built layer by layer, not in a single press cycle.

The practical outcome is simple: one HDI board can replace two or three standard boards, in less space, with better signal behavior.

HDI vs. Standard PCB

Dimension	Standard PCB	HDI PCB
Layer count	1–8	6–20+
Via type	Through-hole	Microvias, blind/buried, stacked/staggered
Drilling	Mechanical	Laser (≤150 μm)
Trace/space	≥100 μm	≤75 μm
Lamination	Single cycle	Sequential (multi-cycle)
Component density	Low–medium	Very high
Signal integrity	Adequate	Superior; minimal stubs
Size & weight	Larger	Smaller, lighter
Relative cost	Baseline	2–5× higher
Typical use	Appliances, industrial controls	AI servers, 5G, ADAS, smartphones

HDI is not a “better version” of a standard PCB. It is a different manufacturing class, with different constraints and different economics.

The Core of HDI: Microvias, Blind Vias, and Buried Vias

Microvias

Microvias are the structural basis of HDI. Because they penetrate only one or two layers, they free up routing channels that through-holes would block. This is why HDI can break out 0.4 mm pitch BGAs—something standard PCBs cannot do cleanly.

We routinely work with microvias down to 0.10 mm. At these diameters, aspect ratio control becomes critical. A 1:1 aspect ratio is the industry benchmark; exceeding it without tightly controlled plating chemistry leads to voids, which become latent reliability risks.

Stacked vs. Staggered Vias

Stacked vias: Aligned vertically. Maximum space efficiency, but require copper filling and precise planarization. Every underlying microvia must be filled and polished flat before the next layer is built.

Staggered vias: Offset between layers. Mechanically simpler and less expensive, but consume more X–Y space.

In dense BGA escape routing, stacking is sometimes unavoidable. Where possible, we recommend staggered layouts—they are more forgiving and improve long-term reliability.

Sequential Lamination

Standard PCBs are laminated once. HDI boards are built iteratively: core lamination → laser drilling → plating → additional prepreg and foil → repeat. A “2+N+2” structure, for example, involves at least two extra lamination cycles beyond the core build.

This is one of the largest cost drivers in HDI. It also explains why lead times stretch and why process control—not design—determines success.

What Makes HDI PCB Assembly Different?

1. Narrower Process Windows

A line optimized for 4-layer FR-4 with 0603 passives cannot reliably assemble a 12-layer HDI board with 01005 components, 0.4 mm BGAs, and microvias. The margin for error drops sharply as density rises.

At POE, we treat HDI as a distinct process flow, not a variant of standard SMT. That distinction matters more than most buyers realize.

2. Solder Paste and Stencil Requirements

HDI forces tighter control over deposition. Fine-pitch areas often require stepped stencils with local thickness reductions. Solder Paste Inspection (SPI) is not optional—it is mandatory to verify volume and shape on pads as small as 0.2 mm × 0.3 mm.

3. Via-in-Pad and Microvia Management

Placing microvias directly in BGA landing pads (via-in-pad) is common in HDI. Left untreated, these vias wick solder during reflow. The solution is copper-filled, capped, and planarized vias—flat enough for component placement, stable enough to survive thermal cycling.

We see many suppliers skip proper filling to save cost. The result is predictable: head-in-pillow defects and field returns.

4. Thermal Management

Thin dielectrics and high component density make HDI boards sensitive to thermal gradients. Reflow profiles must be tuned to prevent:

Voids in microvia structures

Warpage from uneven expansion

BGA head-in-pillow failures

These are not theoretical risks. They appear in production when process control is weak.

5. Inspection Complexity

Visual inspection ends at the surface. With blind and buried vias, you need:

AOI for fine-pitch components

X-ray inspection for BGA and bottom-termination components

Cross-sectioning for microvia integrity verification

If your supplier does not include these as standard, they are assuming risks they have not told you about.

Why HDI PCB Assembly Matters?

Miniaturization without compromise: Critical for wearables, implants, and handheld devices.

Signal integrity: Shorter paths and no through-hole stubs reduce reflection and jitter.

Reliability: Lower aspect ratios and better materials improve lifecycle performance.

Enabler for next-gen systems: AI servers, ADAS, 5G radios, and satellite payloads all depend on HDI.

The global HDI PCB market was valued at $9.5 billion in 2025 and is projected to reach $14.2 billion by 2034. In AI server platforms, HDI demand is growing above 25% annually. In automotive electronics, HDI adoption is expanding at 15%+ CAGR. These numbers are not forecasts—they are reflected in current quoting activity.

Applications

AI Servers & HPC: 16–20+ layer HDI, ultra-fine BGAs, aggressive signal integrity requirements.

Automotive (ADAS, Domain Controllers): High reliability, thermal stability, IATF 16949 compliance.

Smartphones & Tablets: The original HDI driver; stacked microvias, extreme density.

Wearables & IoT: Minimal footprint, strict power constraints.

5G Infrastructure: High-frequency laminates, controlled impedance, tight tolerances.

Medical Devices: Implantables and diagnostics where failure is not an option.

Aerospace & Defense: Mission-critical systems with zero tolerance for field failures.

HDI PCB Assembly Quality Standards

Standard	Scope
IPC-2226	HDI design and microvia requirements
IPC-6012	Rigid PCB qualification
IPC-A-610 Class 3	Acceptability of electronic assemblies (high reliability)
ISO 9001:2015	Quality management
ISO 13485:2016	Medical device quality management
ISO 14001:2015	Environmental management
UL, RoHS, REACH	Safety, environmental compliance

How to Choose an HDI PCB Assembly Partner?

Use this framework to separate marketing claims from actual capability.

1. Verify HDI-Specific Capability

Ask:

Minimum microvia diameter? (≤0.10 mm is standard.)

Maximum layer count? (6–20+ layers.)

Stacked and staggered microvias supported?

Aspect ratio control? (1:1 is the benchmark.)

2. Assess Assembly and Inspection Equipment

Ask:

AOI for fine-pitch inspection?

X-ray for BGA and bottom-termination components?

Experience with 01005 components and 0.4 mm BGAs?

Proven via-in-pad processes with filled and capped microvias?

3. Review Quality Systems

Ask:

IPC Class 2 or Class 3?

First-pass yield on HDI assemblies?

Are X-ray and AOI reports included with shipments?

4. Evaluate Engineering Support

Ask:

Do you provide DFM reviews specific to HDI?

Can you advise on microvia placement and stack-up optimization?

Will a senior process engineer review my design before production?

5. Check Track Record

Ask:

Have you built HDI for AI, automotive, or 5G applications?

Can you provide references or case studies?

If a supplier cannot answer these questions clearly, they are not ready for your HDI project.

Why POE for Your HDI PCB Assembly?

HDI is not a side offering at POE. It is a core competency, supported by equipment, process discipline, and engineering depth.

What we deliver:

Full HDI stack-ups: 1+N+1 through 4+N+4, including any-layer interconnect.

Microvia capability: Laser-drilled down to 0.10 mm, 1:1 aspect ratio, with copper filling and planarization.

Via-in-pad: Filled and capped microvias for fine-pitch BGA breakout.

Advanced inspection: 3D AOI and X-ray as standard, not optional.

Turnkey execution: From component sourcing to final functional testing.

Supply chain integrity: Authorized distribution channels only—no grey market, no counterfeits.

Engineering involvement: Senior HDI process engineers participate directly in DFM reviews.

Volume flexibility: Prototypes to volume production.

We have supported HDI programs across AI computing, automotive electronics, telecommunications, medical devices, and industrial systems. Our role is not to sell you a board—it is to make sure your design survives production and performs in the field.

FAQ

Q: What is HDI PCB assembly?

HDI PCB assembly is the process of assembling components onto High-Density Interconnect PCBs that use laser-drilled microvias (≤150 μm), blind/buried vias, and sequential lamination to achieve higher routing density than standard PCBs.

Q: How is HDI assembly different from standard PCB assembly?

HDI requires laser-drilled microvias, tighter process windows, stepped stencils, AOI, X-ray inspection, and precise thermal management—none of which are required for standard through-hole PCBs.

Q: What is a microvia?

A microvia is a laser-drilled hole ≤0.15 mm that connects adjacent layers. It reduces routing congestion and enables fine-pitch BGA breakout.

Q: Stacked vs. staggered microvias—what's the difference?

Stacked microvias are vertically aligned and space-efficient but require copper filling and planarization. Staggered microvias are offset, mechanically simpler, and often more reliable when space permits.

Q: Why is HDI more expensive?

Costs rise due to sequential lamination, laser drilling, microvia filling, tighter tolerances, advanced materials, and intensive inspection. The premium is structural, not optional.

Q: When should I choose HDI?

When your design demands miniaturization, high signal integrity, or high-density interconnects—especially in AI, 5G, ADAS, smartphones, wearables, or medical devices.

Q: Which industries rely on HDI?

AI servers, automotive (ADAS), 5G infrastructure, consumer electronics, medical devices, aerospace, and defense.

Q: What standards apply to HDI?

Primary standards include IPC-2226 (design), IPC-6012 (qualification), and IPC-A-610 (assembly acceptability).

Ready to Start Your HDI PCB Assembly Project?

HDI is where high-performance electronics are heading. The technical barriers are real—but manageable with the right partner.

Send us your Gerber files and BOM. We will provide a DFM review focused specifically on HDI requirements and a fixed-price quotation within 24 hours. You will know exactly what is feasible, what it costs, and where the risks lie—before you commit.

POE. From Gerber to finished board—HDI, done right.
