Why Choose Rigid-Flex PCBs?
16 June 2025
Views: 37
In today's fast-evolving electronics industry, Rigid-Flex PCBs (Printed Circuit Boards) have emerged as a game-changing solution for high-performance and compact designs.  Combining the best of rigid and flexible PCBs, they offer unparalleled reliability, space efficiency, and durability—making them ideal for cutting-edge applications.

Why Choose Rigid-Flex PCBs?

This month, we dive into why Rigid-Flex PCBs are the future and how they outperform traditional PCB designs.

What is a Rigid-Flex PCB?

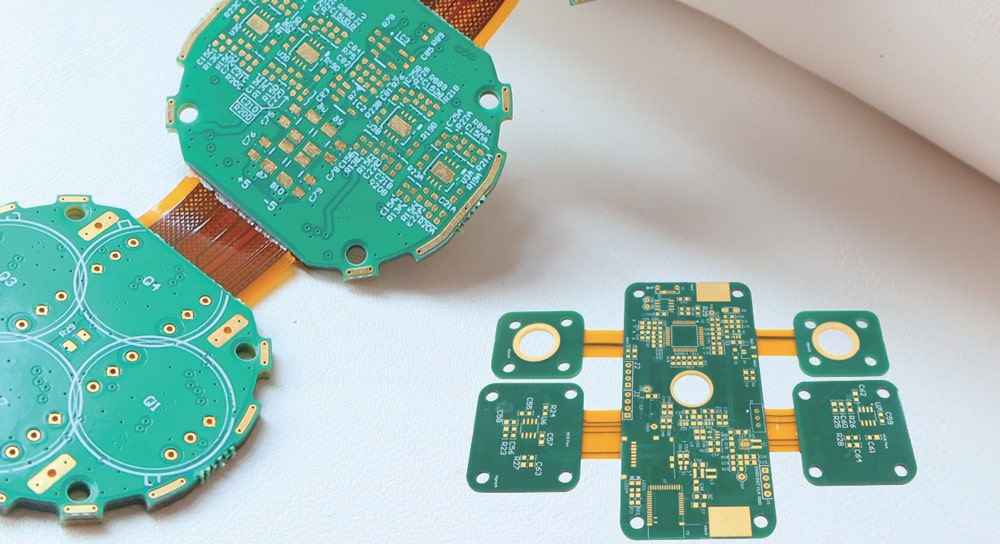

A Rigid-Flex PCB is a hybrid circuit board that combines the benefits of both rigid and flexible PCBs into a single, integrated design.  It consists of rigid PCB sections (for component mounting) connected by flexible circuit layers, allowing the board to bend or fold while maintaining electrical connections.

Why Choose Rigid-Flex PCBs?

Key Advantages of Rigid-Flex PCBs

1.Space & Weight Reduction

Eliminate bulky connectors—Seamless transitions between rigid and flexible sections and reduce assembly size.
Lighter than rigid PCBs-Perfect for aerospace, wearables, and portable devices.
Example: A medical wearable using Rigid-Flex PCBs reduced weight by 30% compared to traditional designs.

2.Enhance Durability & Reliability

Fewer solder joints -Lower risk of failure due to vibration/shock.

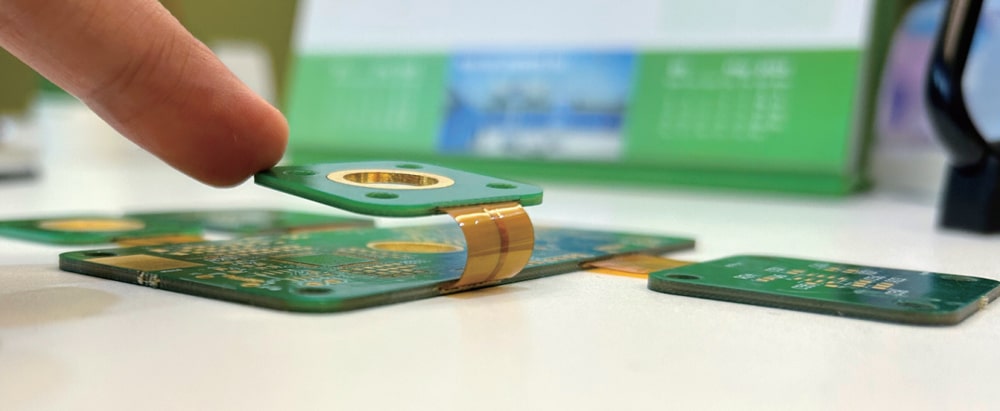

Bendable without cracking -Withstands 100,000+ flex cycles (IEC 60112 tested).
Better thermal performance -Efficient heat dissipation in high-power applications.
Case Study: Automotive control modules using RigidFlex saw a 40% drop in field failures.

application

3. Simplify Assembly & Lower Costs

Fewer interconnects-Reduce assembly time and labor costs.
Single-unit construction -No need for multiple PCBs + harnesses.
Long-term savings -Higher reliability = lower maintenance costs.
A drone manufacturer cut assembly costs by 25% after switching to Rigid-Flex.

application

4. Design Freedom for Innovation

3D packaging - Fits into complex shapes (e.g., foldable phones, robotic arms).
High-speed signal integrity - Minimizes EMI in 5G/RF applications.
Foldable smartphones rely on Rigid-Flex PCBs for seamless hinge integration.

What Industries Use Rigid-Flex PCBs?

Medical Devices (Hearing aids, endoscopes)
Consumer Electronics (Smartwatches, foldable phones)
Industrial IOT(Robotics, sensors)
Aerospace & Defense (Avionics, satellites)
Automotive (ADAS, EV battery management)

What Industries Use Rigid-Flex PCBs?

Design Tips for Rigid-Flex PCBs

Bend Radius → Keep ≥ 10x the flex layer thickness to avoid cracking.
Stiffener Placement → Reinforce high-stress areas (e.g., connectors).
Material Selection → Polyimide for flexibility, FR4 for rigidity.
Controlled Impedance → Critical for high-frequency signals.


POE Rigid-Flex PCB capabilities

Categor Process Capability Categor Process Capability
Production Type Single/Double-sided boards, Multilayer boards, Zinc-plated boards, Layered boards, Rigid-Flex boards, HDI buried hole boards, Special process boards Layers 1-14 layers FPC, 2-14 layers Rigid-Flex boards and HDI buried hole boards
Max. Production Size Single/Double-sided: 250*2500mm, Multi-layer: 500*750mm, Rigid-Flex: 500*750mm Insulation Thickness 27.5μm / 50μm / 75μm / 100μm / 125μm / 150μm
Board Thickness FPC: 0.06-0.4mm, Rigid-Flex: 0.25-6.0mm Non-Metal Hole Tolerance ±0.05mm
Surface Treatment Immersion Gold, Immersion Silver, Electroplating Gold, Electroplating Tin, OSP Reinforcement Material FR4/ PI/ PET/ SUS/ PSA
Min. Half-Hole Size 0.4mm Immersion Gold Au 0.025-0.075μm/ Ni 1-4μm
Min. Line Space/Width 0.045mm/0.076mm Electroplating Gold Au 0.025-25.4μm/ Ni 1-25.4μm
Board Thickness Tolerance ±0.03mm Impedance Value 50Ω-120Ω
Copper Thickness 12μm / 18μm / 35μm / 70μm Impedance Tolerance ±10%
Hole Tolerance (Plated Through Hole) ±0.05mm Min. Slot Width 0.80mm
Min. Drilling Size 0.1mm Standards GB/ IPC-650/ IPC-6012/ IPC-6013H/ IPC-6013H
Note: For high-difficulty FPC flexible circuit boards and HDI Rigid-Flex boards, technical evaluation is required based on the documentation.


Common Stackup For Rigid-Flex PCB

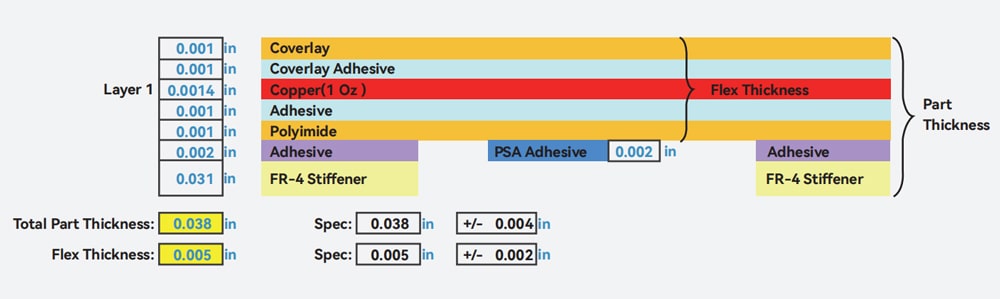

1-layer-flex-with-optional-fr4-stiffeners-and-psa:
1-layer-flex-with-optional-fr4-stiffeners-and-psa:

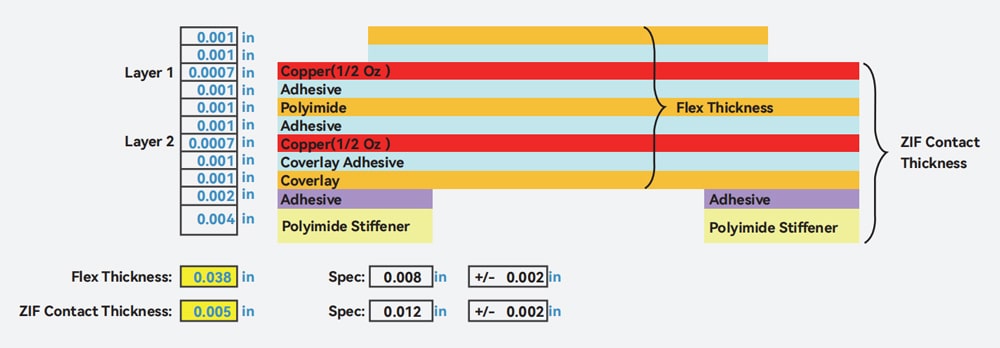

2-layer-flex-with-zif-contact-fingers:
2-layer-flex-with-zif-contact-fingers:

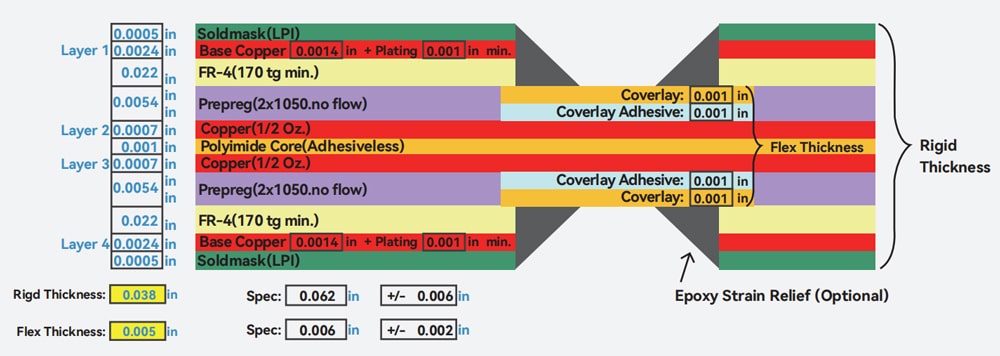

4-layer-rigid- flex-stackup:
4-layer-rigid- flex-stackup:


Why Us?

We are an ISO 9001:2015 Certified PCB assembly company committed to upholding rigorous quality standards.
With over 20 years of experience in both fabricating and assembling high-quality rigid-flex printed circuit boards, we ensure precision and reliability.
Our state-of-the-art manufacturing facilities are equipped to handle any custom and complex board requirements efficiently.
Our highly qualified team adheres to industry best practices, offering cost-effective solutions tailored to your needs.
Whether you need prototypes or full production runs, you can rely on our comprehensive PCB fabrication services.
